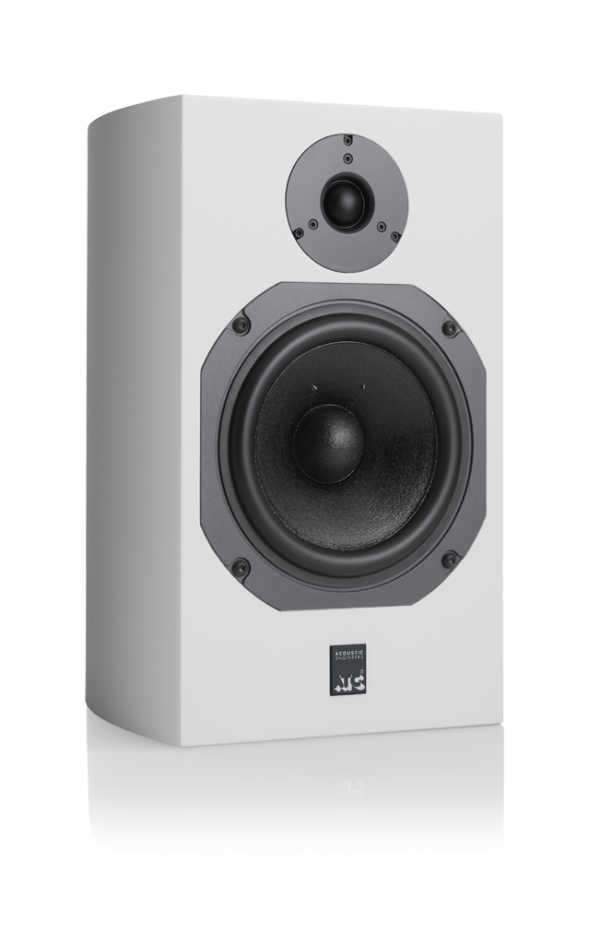

SCM11

Overview

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

Precision undercut bass pole.

“CLD” driver technology with 45mm integral soft dome.

In-house, hand-wound precision flat wire coil.

Massive optimised motor assembly.

Flat impedance curve allowing easy load for amplifiers.

Veneered Finish Options – Cherry, Black Ash.

Painted Finish Options – Satin Black, Satin White.

6 year warranty.

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm CLD

Matched Response: ±0.5dB

Frequency Response (-6dB): 56Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 85dB @ 1W @ 1metre

Max SPL: 108dB

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequency: 2.2kHz

Connectors: Binding Posts/4mm Plugs, bi-wire

Cabinet Dimensions (HxWxD): 381 x 232 x 236mm / 15.00 x 9.21 x 8.46″ (grill adds 28mm depth)

Weight: 10.9kg
