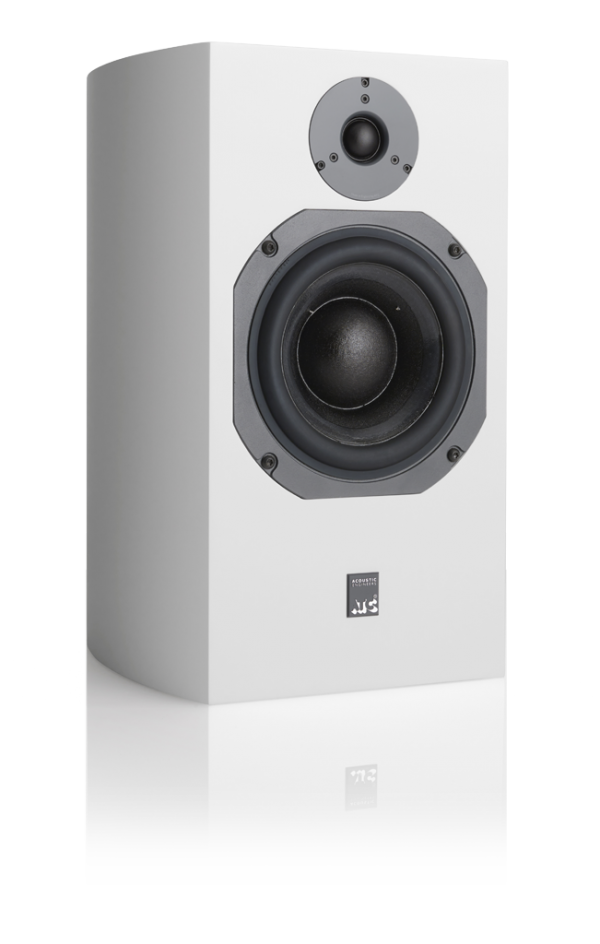

SCM19

Overview

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

“SL” spec bass driver with 75mm integral soft dome.

9kg optimised short-coil/long gap motor assembly.

In-house, hand-wound precision flat wire coil.

Flat impedance curve allowing easy load for amplifiers.

Veneered Finish Options – Cherry, Black Ash.

Painted Finish Options – Satin Black, Satin White.

6 year warranty.

“Superlative clarity; excellent phase coherence; sublime bass.” Hi-Fi Choice Magazine, September 2014

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL

Matched Response: ±0.5dB

Frequency Response (-6dB): 54Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 85dB @ 1W @ 1metre

Max SPL: 108dB

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequency: 2.5kHz

Connectors: Binding Posts/4mm Plugs, bi-wire

Cabinet Dimensions (HxWxD): 438 x 265 x 300mm / 17.24 x 10.43 x 11.81″ (grill adds 34mm to depth)

Weight: 17.8kg
