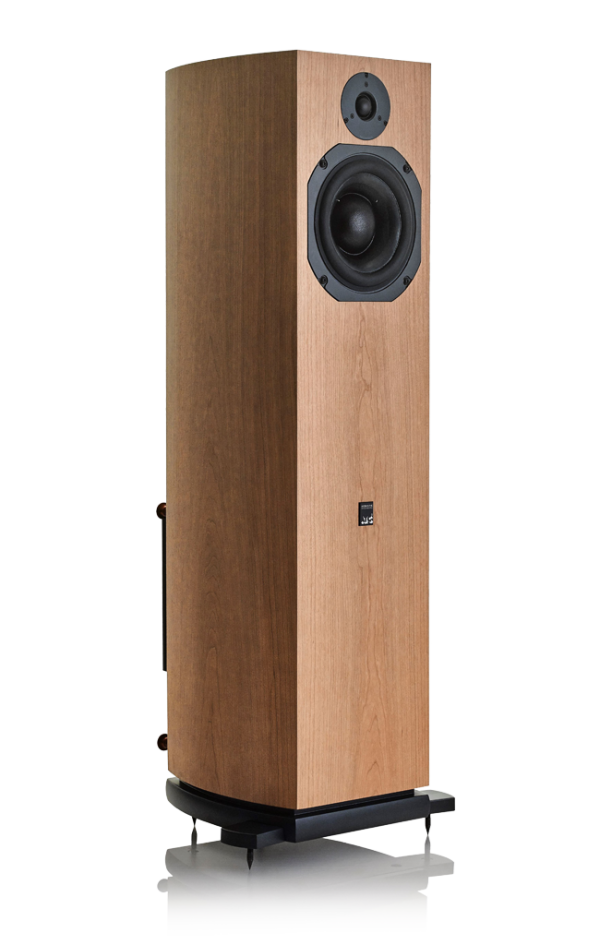

SCM19A

Overview

New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.

“SL” spec bass driver with 75mm integral Soft Dome.

9kg optimised short-coil/long gap motor assembly.

On-board grounded source 182 watt Class A/B Bi-amplifier.

Active crossover filters and overload protection.

Veneered Finish Options – Cherry, Black Ash.

Painted Finish Options – Satin Black, Satin White.

6 year warranty.

Drivers: HF ATC 25mm dual suspension Tweeter, Mid/LF ATC 150mm SL

Matched Response: +/- 0.5dB

Frequency Response (-6dB): 54Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Max SPL: 108dB

Crossover Frequency: 2.5kHz

Input Connector: Female XLR

Input sensitivity: 1V

Filters: 2nd Order critically damped with phase compensation

Overload Protection: Active FET momentary gain reduction

Amplifier Output: 150W LF, 32W HF

Dimensions (HxWxD): 980 x 370 x 344mm / 38.58 x 14.56 x 13.54″ (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)

Weight: 31kg

Spikes: 4 per cabinet, M8 x 1.25mm
