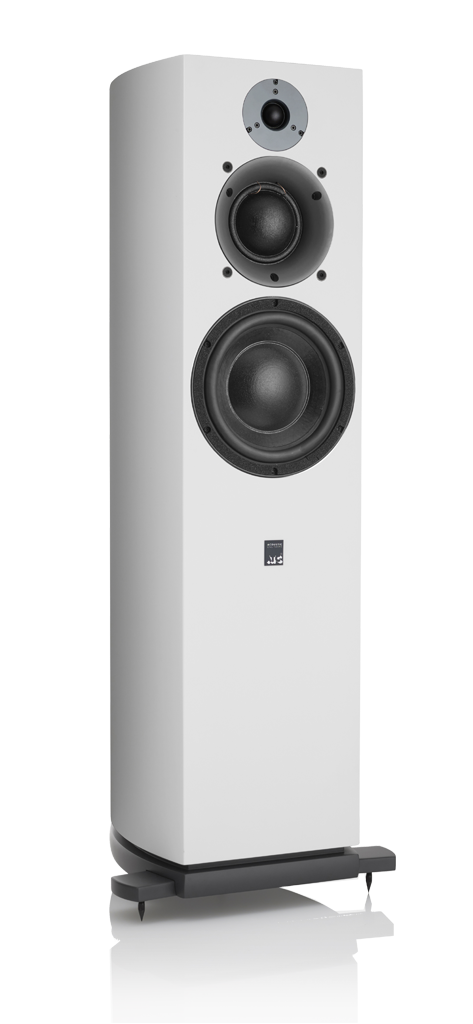

SCM40A

Overview

New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.

ATC Soft Dome mid-range driver.

ATC 164mm short coil bass driver.

All drive units incorporate massive optimised motor assemblies.

On-board grounded source 242 watt Class A/B Tri-amplifier.

Active crossover filters and overload protection.

Veneered Finish Options – Cherry, Black Ash.

Painted Finish Options – Satin Black, Satin White.

6 year warranty.

“these ATCs… take all in their stride, revealing a lovely cohesion throughout the frequency range. Resolution, timing and dynamics are all spot-on… factor in the built-in amplification, exotically engineered in-house drive units and the resultant exceptional sound quality, and the SCM40As emerge as something of a high-end bargain. Consider us smitten.” What Hi-Fi, March 2015.

Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC

Matched Response: ±0.5dB

Frequency Response (-6dB): 48Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Max SPL: 112dB

Crossover Frequencies: 380Hz & 3.5kHz

Input Connector: Female XLR

Input sensitivity : 1V

Filters : 4th Order critically damped with phase compensation.

Overload Protection : Active FET momentary gain reduction.

Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.

Amplifier Output: 150W LF, 60W MF, 32W HF

Cabinet Dimensions (HxWxD): 980 x 370 x 344mm / 38.58 x 14.56 x 13.54″ (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)

Weight: 36kg

Spikes: 4 per cabinet, M8 x 1.25mm
