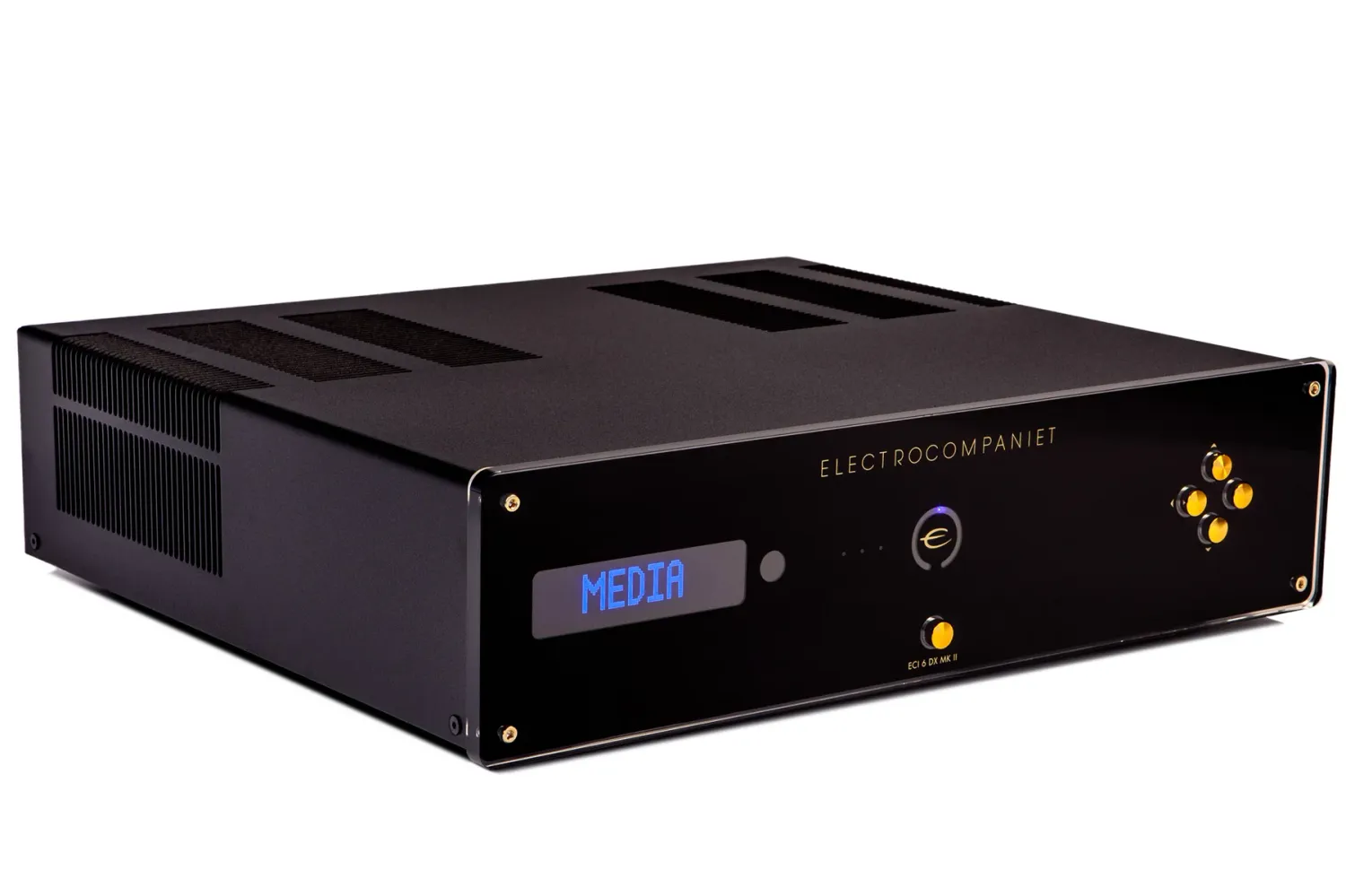

Electrocompaniet ECI 6 DX MKII Integrated Amp / DAC / Streamer
This single unit is able to play whichever, wherever and whatever audio source you may have, and makes it sound like music was meant to be sounding.
IMPROVED EC SOFTWARE ENGINE STREAMER
Like its predecessor, it has an extremely powerful built-in streamer, flexible and easy to use. It can play directly from music services such as Tidal, Qobuz and Spotify, can be fed music through AirPlay or DLNA, and it can even index and play from your own music collection stored on your network.
IMPROVED CONSTRUCTION
The ECI 6 DX MKII also features the design upgrades introduced with the MKII series, including new front plate design and updated, more rigid chassis.
EC SOFTWARE ENGINE EC PLAY APP CONTROL
The ECI 6 DX MKII can be operated by the intuitive iOS or Android application, the universal webinterface, or with the straight forward IR remote control.
TECHNICAL SPECIFICATIONS
All measurements are made at 120V / 240V //50Hz / 60Hz | |
Digital section: | |
D/A converter | 24 bit/192 kHz |
Sample rate converter | 24bit / 192kHz |
Inputs | SPDIF, 2x Toslink, 1x USB |
USB: | asynchronous up to 24bit/ 192kHz supported |
SPDIF: | 24bit/ 192kHz |
Toslink: | 24bit/ 96kHz |
Streamer section | |
Streaming services • AirPlay 2 ® | |
Supported formats: | |
Preamplifier section | |
Input impedance ( Balanced input ) | 47Kohm |
Maximum input level | 10 Volt RMS |
Noise floor ( 1Vrms, 20 - 20 kHz, balanced) | -135 dB |
THD + N (1Vrms, 20 - 20 kHz, balanced) | <0.004% |
Gain (Balanced) | 0 dB |
Amplifier section | |
Output Impedance | < 0,02 Ohm |
Frequency response | 1 – 150 kHz |
Channel separation | > 120 dB |
THD ( 20 - 20 kHz) | < 0.004% |
Maximum peak current | >100A |
Damping factor 8 ohm load | >350 |
I Input sensitivity 120W output | 1.3Vrms |
Input sensitivity HT 120W output | 1Vrms |
Gain HT Input | x36 (31 dB) |
Rated output power | |
8 ohms | 2 x 125 W |
4 ohms | 2 x 200 W |
2 ohms | 2 x 370 W |
Power consumption | 110 W |
Standby | 1W |
(no load or signal) | |
Dimensions | |
Width | 470 mm / 18.3 inches |
Depth ( with a speaker terminals) | 430 mm / 16.9 inches |
Height | 128 mm / 5 inches |
Weight | 20,5 Kg / 45 lbs. |
