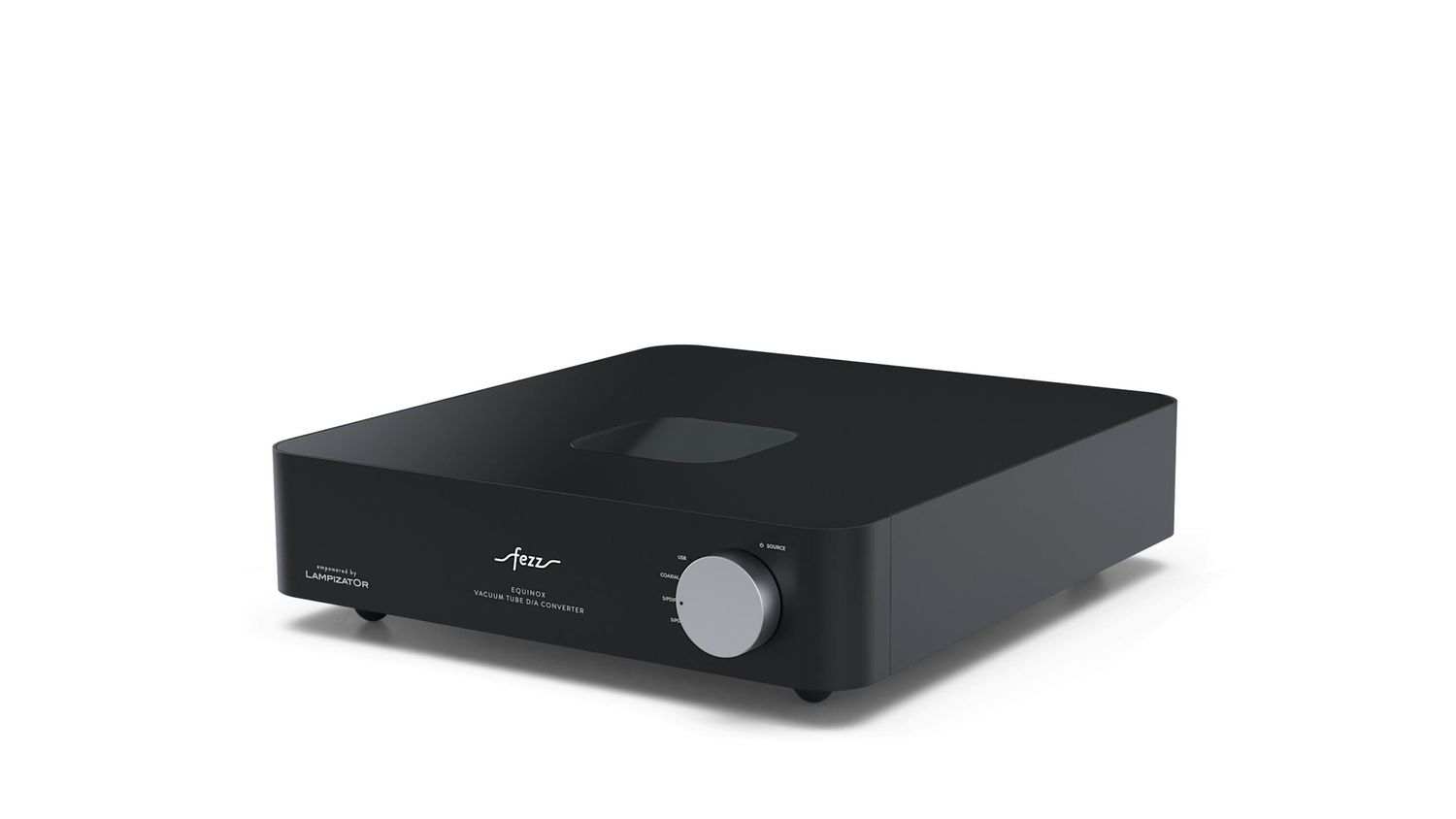

Fezz Equinox DAC by Lampizator

Equinox is the world’s only Lampizator licensed vacuum tube D/A converter designed by Lukas Fikus.

Equinox is the world’s only Lampizator licensed vacuum tube D/A converter designed by Łukasz Fikus. It is also the cheapest on a market D/A converter with the Lampizator logo. The unit is based on PCM1794 chipsets and 12au7 vacuum tube. Fezz/Toroidy engineers designed a dedicated, highest quality Supreme class toroidal power transformer for Equinox’s power supply. Device is equipped with 2 Toslink, 1 coaxial and 1 USB digital signal inputs. Thanks to the easily accessible tube, located under the sliding glass on the top panel, units offers the opportunity to create and adjust sound tone according to your own preferences by replacing the tube without any hustle.

Technical specification

Type:

D/A converter empowered by Lampizator

Model:

Equinox EVO D/A converter empowered by Lampizator

Tube type:

2x ECC82/12AU7

Digital inputs:

USB type B, 2x S/PDIF, Coaxial

Output:

1x RCA

Operation amplifier:

Burr Brown PCM 1794

S/PDIF Receiver:

Asahi Kasei AKM4118

Harmonic distortion THD:

< 0,05%

Power consumption:

9 W

Net weight:

10 kg

Dimensions:

355x380x95 mm
