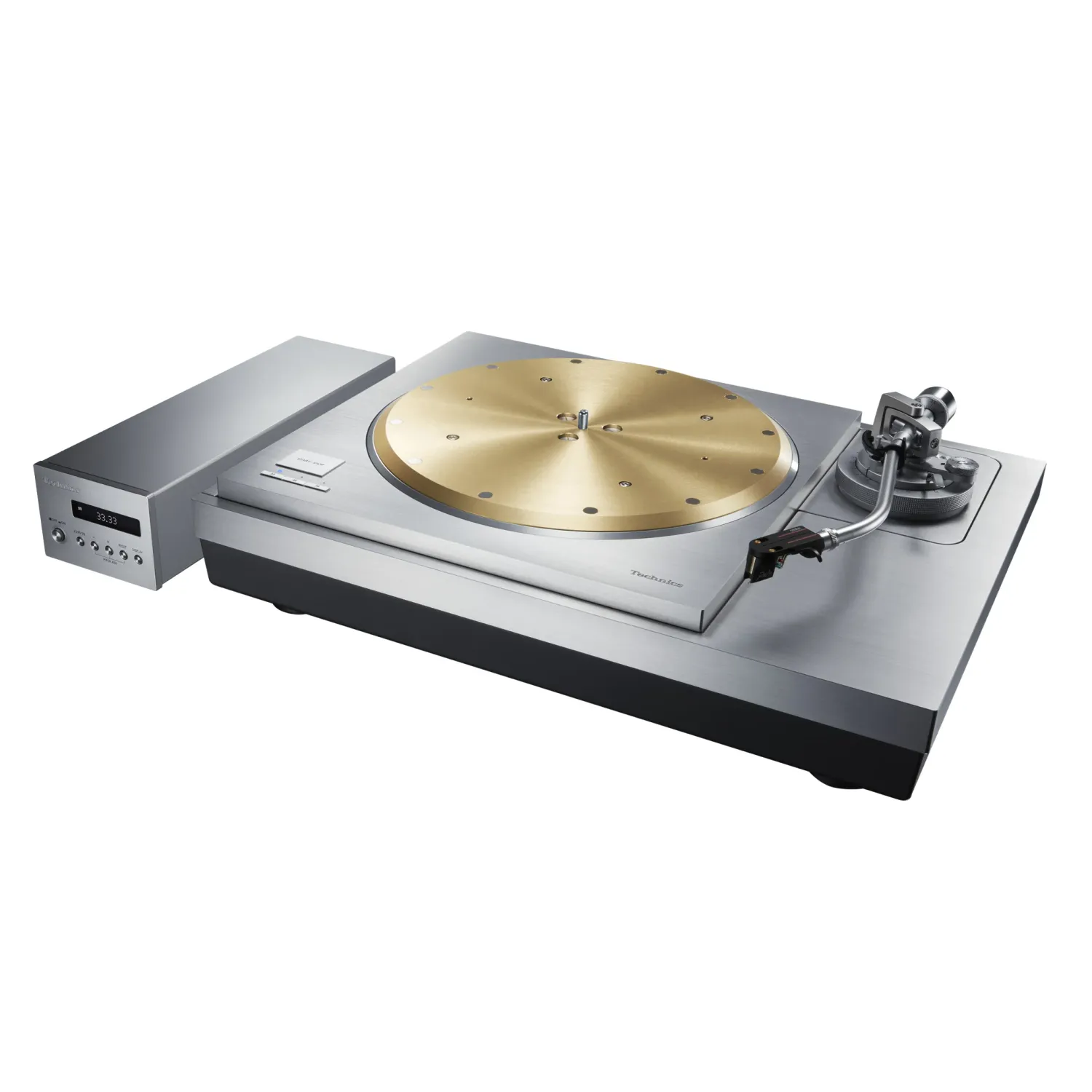

Exquisite, reference-class direct drive turntable system, the SL-1000RE-S uses the SP-10RE-S motor unit with a coreless direct drive motor that was developed for the SL-1200G and further improved to provide both high rigidity and reliability. The high-sensitivity tonearm achieves high initial-motion sensitivity to precisely trace the grooves cut into the records, producing highly vivid sounds.

• Double coil twin rotor-type coreless direct drive motor with heavyweight-class platter
• Constructed to prevent unwanted vibration, helping to achieve overwhelming rotary precision
• The turntable platter positions tungsten weights for high rigidity and excellent vibration damping
• The control unit is separated from the main unit to suppress the effects of unwanted noise
• Supports not only LP (33 1/3 rpm) and EP (45 rpm) analog records, but also SP (78 rpm

Coreless Direct Drive Motor

The motor that forms the heart of the direct drive turntable is based on the coreless direct drive motor that was developed for the SL-1200G launched in 2016, and further improved. The double coil twin rotor-type coreless direct drive motor that was newly developed for this purpose had coils on both sides for 12-pole, 18-coil drive, with high enough torque to drive the heavyweight-class platter (approximately 7.9-kg). Offsetting the coils on both sides 60 degrees improved the rigidity of the substrate, suppressing fine vibrations and reducing self-inductance. These improvements achieved stable rotation of 0.015% wow and flutter or less, which is considered to be the measurement limit. Also, the thrust bearings supporting the heavyweight-class platter use a special engineering plastic to provide both high rigidity and reliability.

Minute Adjustment and Indication of

Rotations

This turntable supports not only LP (33 1/3 rpm) and EP (45 rpm) analogue records, but also SP (78 rpm). Rotation (rpm) can also be set down to two decimal places (maximum ±16%) from the control unit. The OLED display is also capable of displaying rotation with accuracy down to two decimal places, so the user can both hear and see extremely precise rotation.

Separate Control Unit

The control unit is separated from the main unit to suppress the effects of unwanted noise on the main unit. In order to achieve a power supply circuit that provides good regulation for high torque, a switching power supply is used. To reduce the noise reaching the pickup, the switching power supply is equipped with a unique technology that provides a voltage supply with minimal noise by a newly developed "unwanted noise reduction circuit". Also, to minimize the noise even during communication, a highly reliable system that resists the effects of external noise is used for communication between the main unit and the control unit. These thorough noise-reduction measures achieve the world's highest-level S/N.

High-quality Terminal

A gold-plated 5-Pin DIN terminal is used, enabling the user to select the desired PHONO cable. An integrated, machined, high-rigidity aluminum housing also suppresses external noise from reaching the pickup

A Rigid Cabinet and High Damping

Silicon Insulator

The cabinet has a 2-layer construction consisting of BMC (bulk molding compound) and a 30-mm-thick aluminum top panel. The turntable part is a 3-layer construction comprising BMC, aluminum die-cast, and a 25-mm-thick aluminum top panel. This gives the system a construction of 5 layers of different materials to ensure sufficient rigidity. The insulator that supports the cabinet is a special silicon rubber that combines high vibration damping characteristics and long-term reliability. Reinforcement with a cylindrical tube made of a microcell polymer absorbs vibrations in the horizontal direction. These parts are contained in a zinc die-cast housing with high specific gravity, for isolation from external vibrations.
